FC Series Outdoor Common Cathode Full Color Aluminum LED Screen

Pixel pitch: 6.67mm
Led Module size:480mmx320mm
cabinet size: 960mmx960mm
MOQ: 1 square meter
ISO9001, CE, FCC, RoHS,CCC Approved
2-3 Year Warranty

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

FC Series Outdoor Common Cathode Full Color Aluminum LED Screen




Structural Appearance

Appearance Picture-Display Module(480*320*15mm)

                        Appearance Picture-Display Module(480*320*15mm)

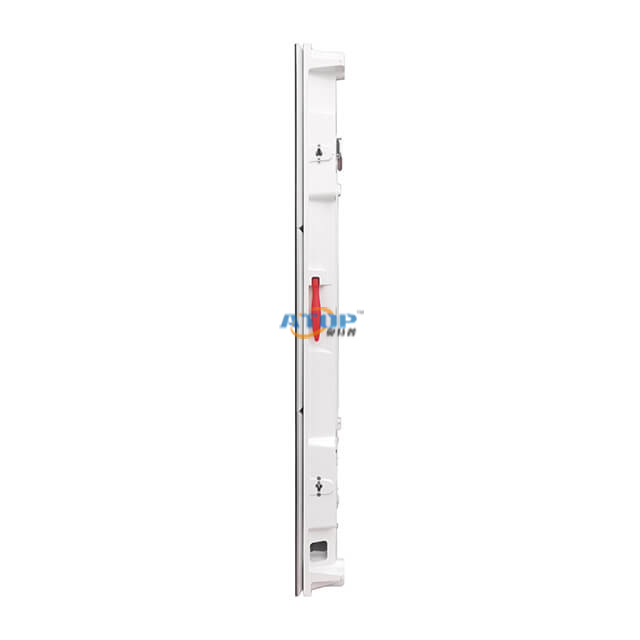

Appearance Picture-Profile Aluminum Cabinet(960*960*90mm )

                         Appearance Picture-Profile Aluminum Cabinet(960*960*90mm )


Description for Product Features


New added vent valve
For the FC series of  LED display, a vent valve has added in the bottom of power box, it can adjust inner gas pressure, recoil temperature rise and balance inner environment.

New added vent valve


Strong Adaptability for outdoor environmental condition

Strong Adaptability for outdoor environmental condition

Strong Adaptability for outdoor environmental condition

Strong Adaptability for outdoor environmental condition



Structural Hard Link, Wireless Design.
The product structure is to adopt hard link, wireless design, its appearance is tidy and beautiful.

Structural Hard Link, Wireless Design.


Aluminum Profile Cabinet, Lightweight, Safety and Reliability, No Distortion.

FC series of LED display is to adopt aluminum profile cabinet, the weight of single cabinet is just 24.5KG, display module is die-casting aluminum material, it is fire resistance, no distortion even it is under the high environmental temperature.

Aluminum Profile Cabinet


Common Cathode with Energy-Saving

Common cathode is an energy-saving power supply technology for LED display, which can effectively solve the problems of high screen temperature and excessive power consumption of common anode circuit. the average temperature of the panel of the common cathode circuit is 15℃ lower than that of the traditional common anode circuit,and the power consumption is reduced by more than 20%.


Real color, more realistic picture
The refresh rate is up to 3840Hz, the high contrast ratio, the grayscale is above 16 bit, the picture is vivid and delicate, the brightness is stable and even, not dazzling or grainy. Red, green and blue three-in-one LED lamp beads, with good consistency, and the viewing angle can reach more than 140°.



Structure optimization, flexible installation
It supports various installation methods such as floor-standing, hoisting, and wall-mounted. Modular design of module, box and power box, front and rear maintenance, hard connection, no structural installation, saving structural cost.


Application


It is widely used for various of outdoor application fields, such as the exterior wall of building, Hanging Garden, Government Cultural Plaza, Bus Station, Vertical Advertising aside road, etc.

application for led screen.

application for led screenapplication for led screen

application for led screen



FC6.67 Technical Parameters

Item

Common anode

Common   Cathode Ⅰ

Common   Cathode Ⅱ

Common   Cathode Ⅲ

Pixel   Composition(SMD)

2727

Pixel   Pitch(mm)

6.67

Module   Resolution(W×H)

72*48

Module   Size(mm)

480*320*17

Module   Weight(Kg)

2

Module   Qty/Cabinet

2*3

Cabinet   Size(mm)

960*960*92

Cabinet   Resolution(W×H)

144*144

Cabinet   Area(m²)

0.92

Cabinet   Weight(Kg)

24.5

Cabinet   Material

Profile Aluminum

Cabinet   Density(dot/m²)

22500

IP Rating

IP66

Single   Dot Brightness Amended

Single   Dot Color Amended

Yes

White   Balance Brightness(cd/m²)

6000

7500

7000

12000

Color   Temperature(K)

6500-9000

Visual   Angle(H/V)

140°/120°

140°/120°

80°/70°

80°/70°

Contrast   Ratio

17000:1

The   Max Power Consumption(W/m²)

700

500

280

450

Average   Power Consumption(W/m²)

235

168

76

150

Input   Voltage (V)

200-240

Maintenance   Method

Front and Rear

Frequency

50&60

IC   Driving(Constant Current)

1/6s

Grayscale

It is available within 65536

Refreshing   Ratio(Hz)

3840

Color   Processor

16bit

Lifespan(h)

100000

Work   Temperature/Humidity

-10℃-50℃/10%RH-98%RH   (Non Condensing)

Storage   Temperature/Humidity

-20℃-60℃/10%RH-98%RH   (Non Condensing)
