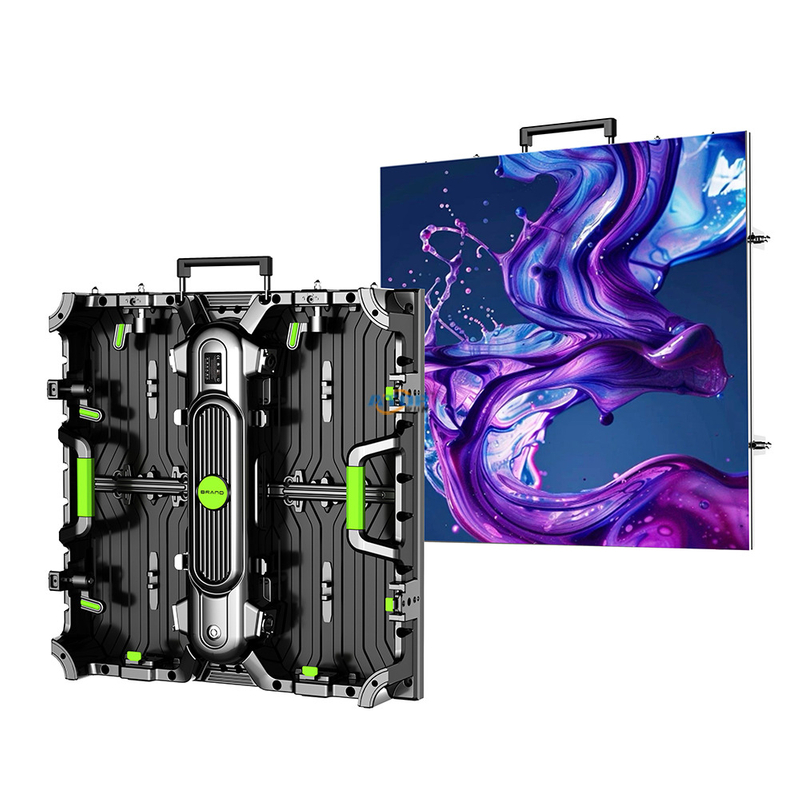

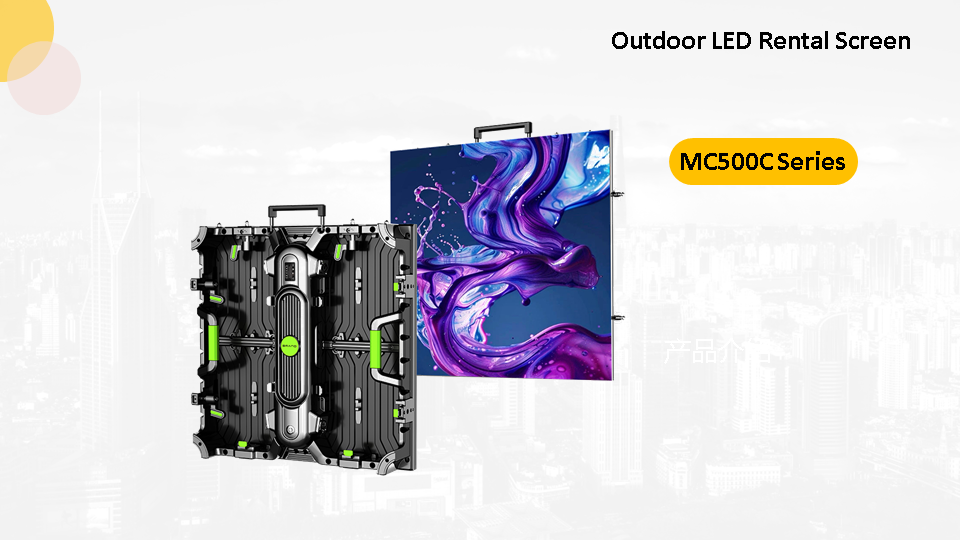

ATOP-MC-C Series 500x500mm/1000mm Stage Rental Led Display

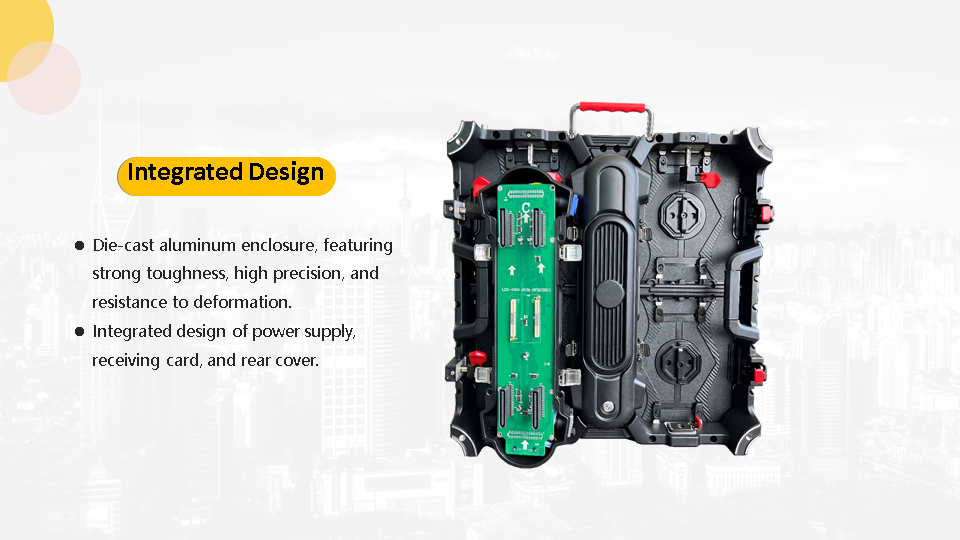

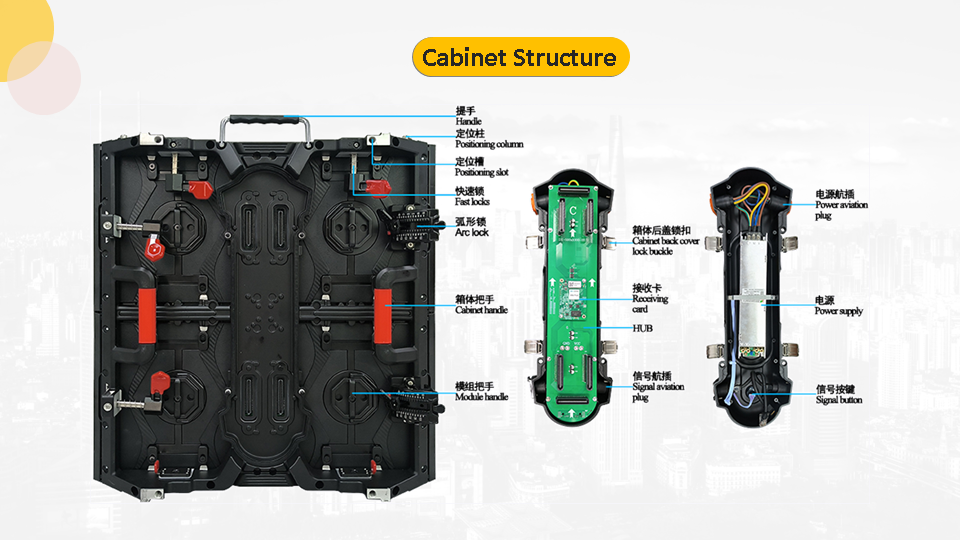

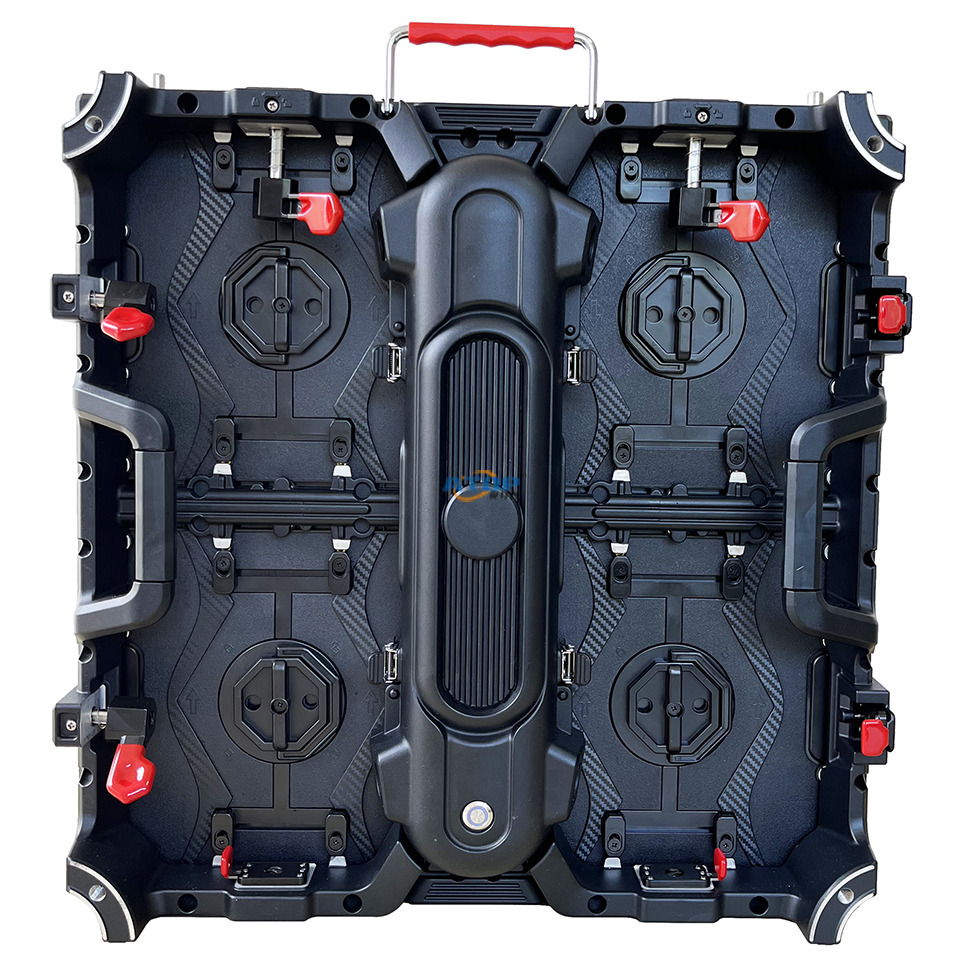

500x500/1000mm die casting aluminum cabinet

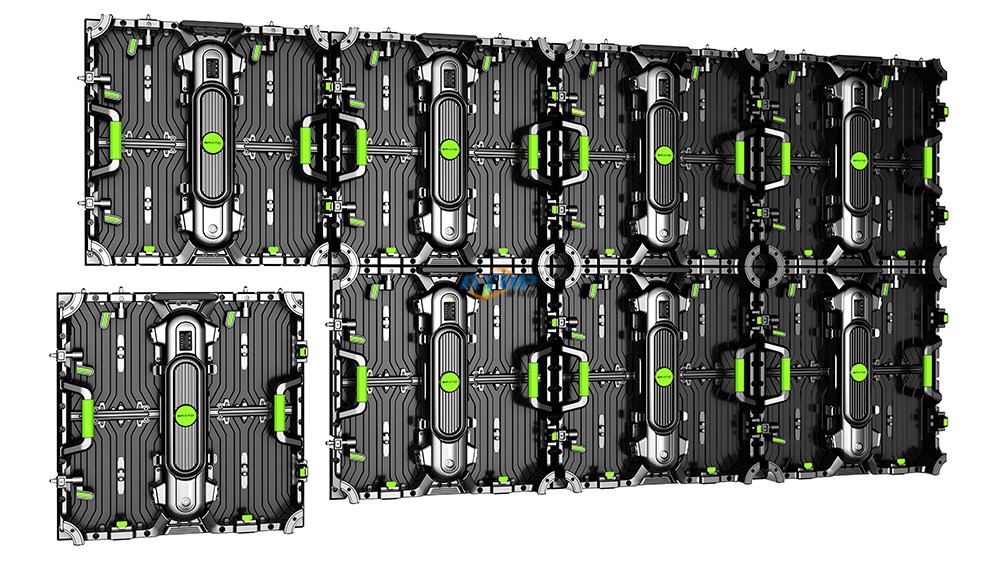

500X500/1000 straight edge or curved lock, 500x500 45° edge or 500x500 flexible are available

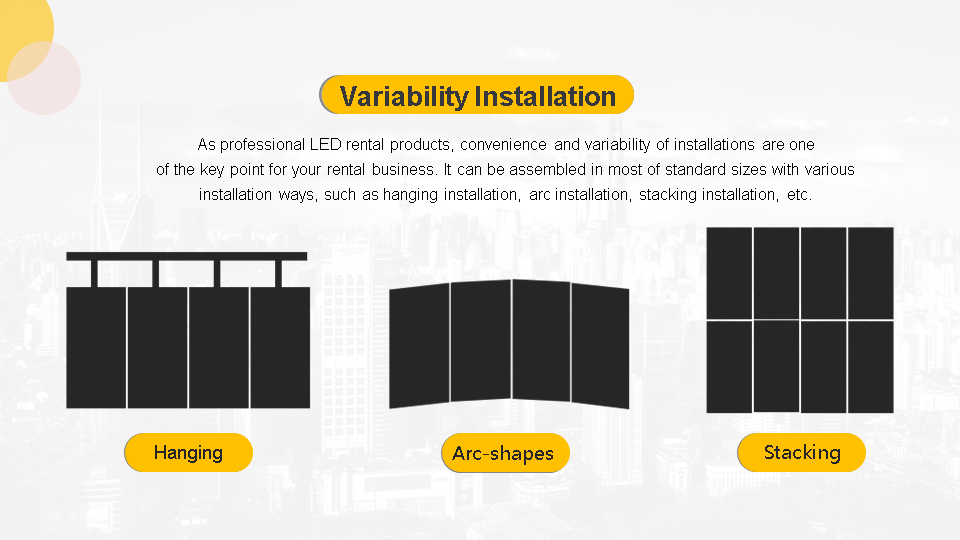

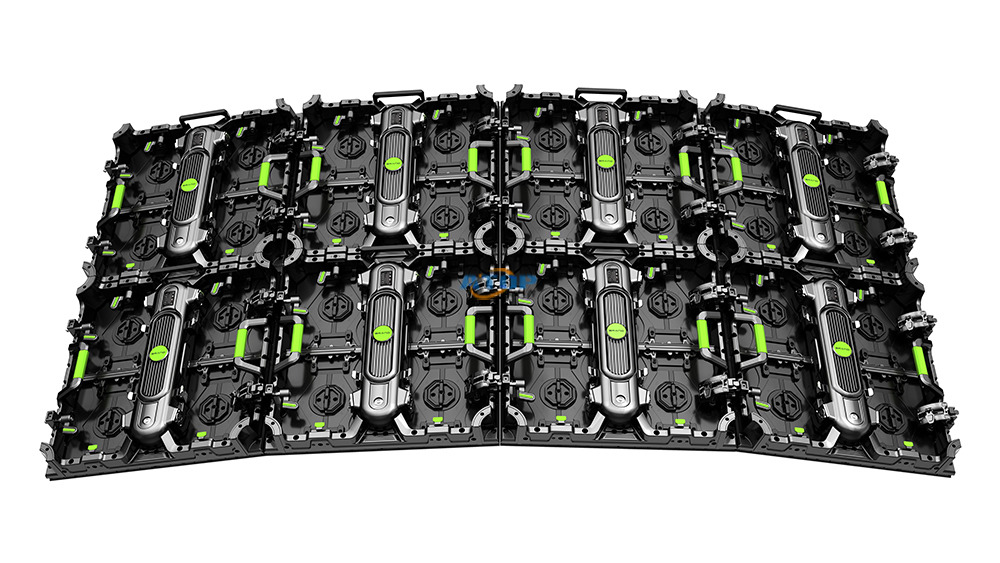

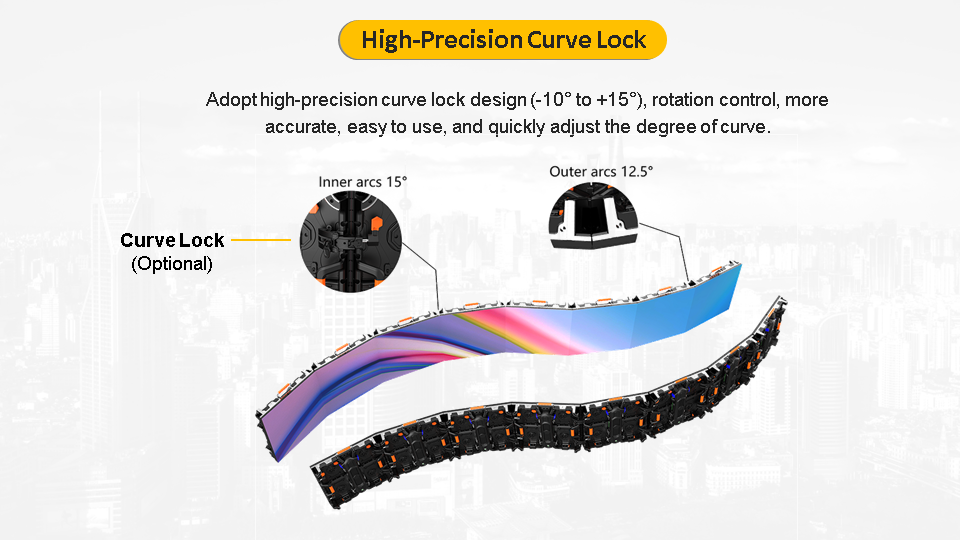

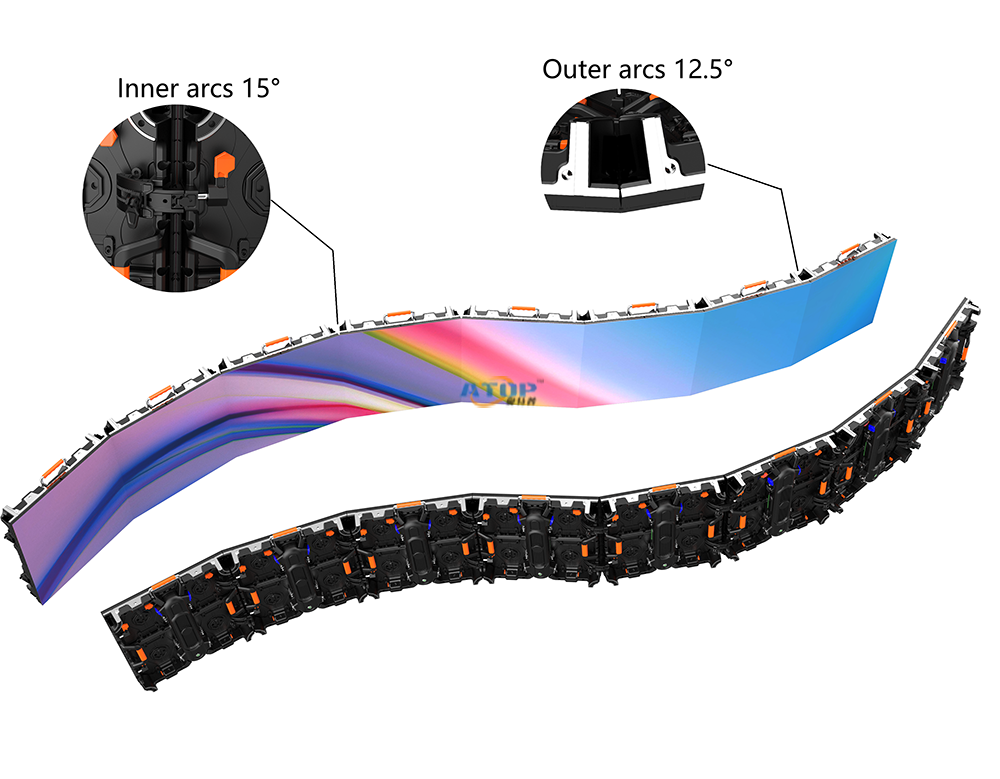

High Precision Curved Lock for Curved Installation

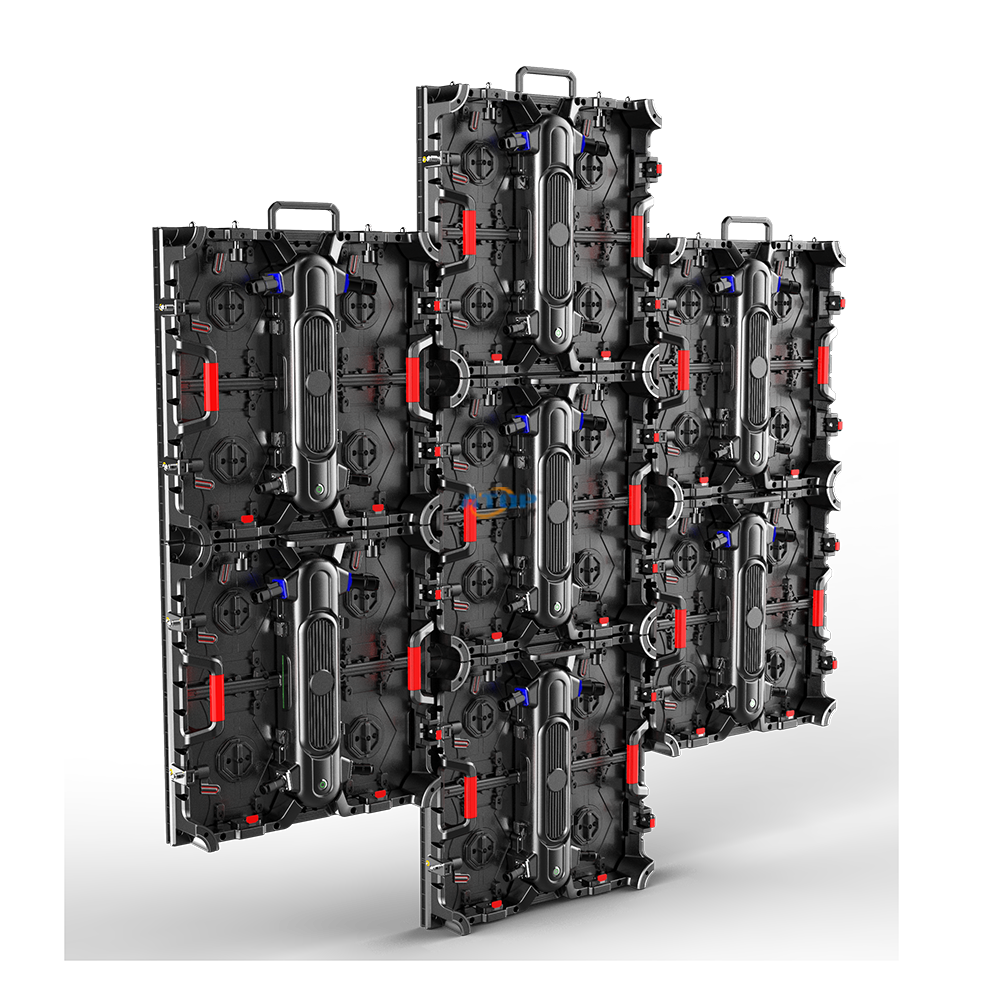

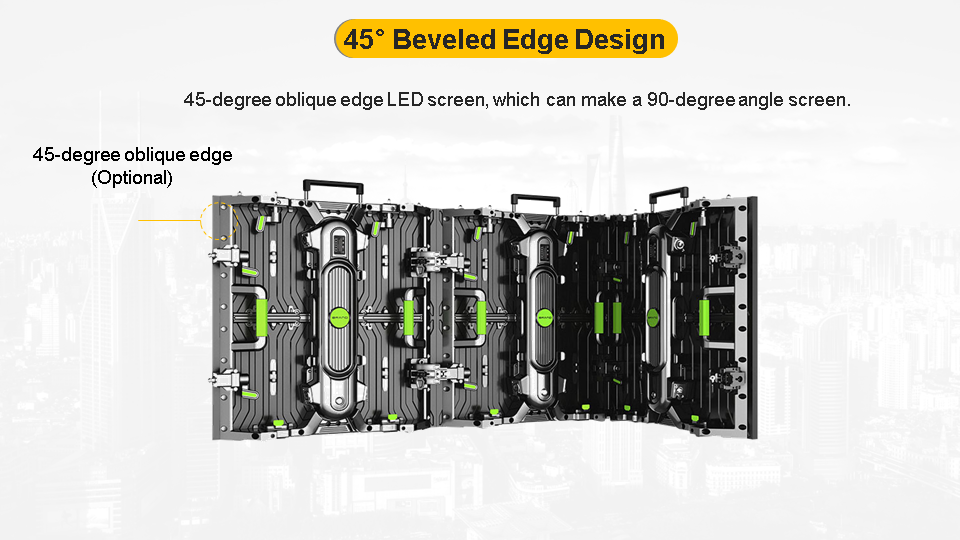

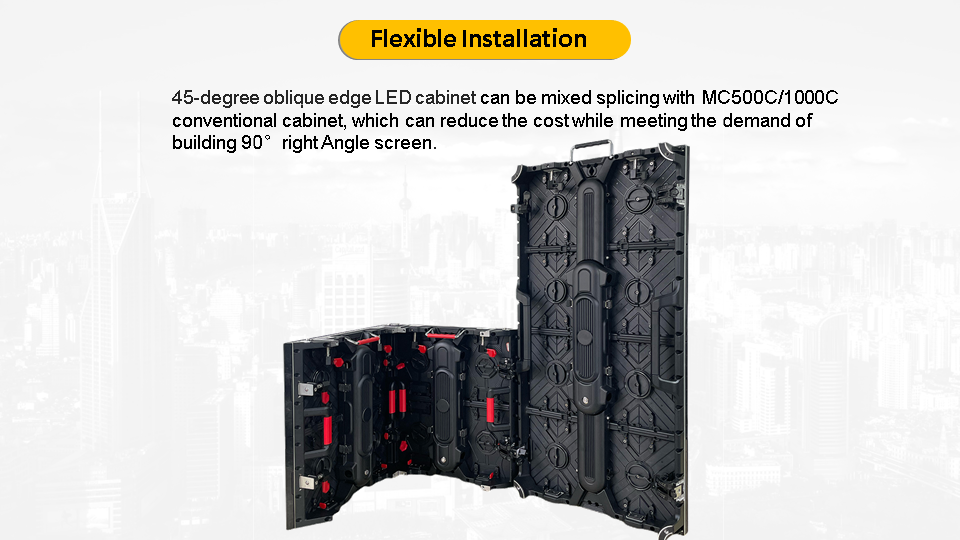

Support cube Installation with 45° edge and curved lock
Ultrathin Design with Detachable Back Cover Box
Support front and real dual maintenance

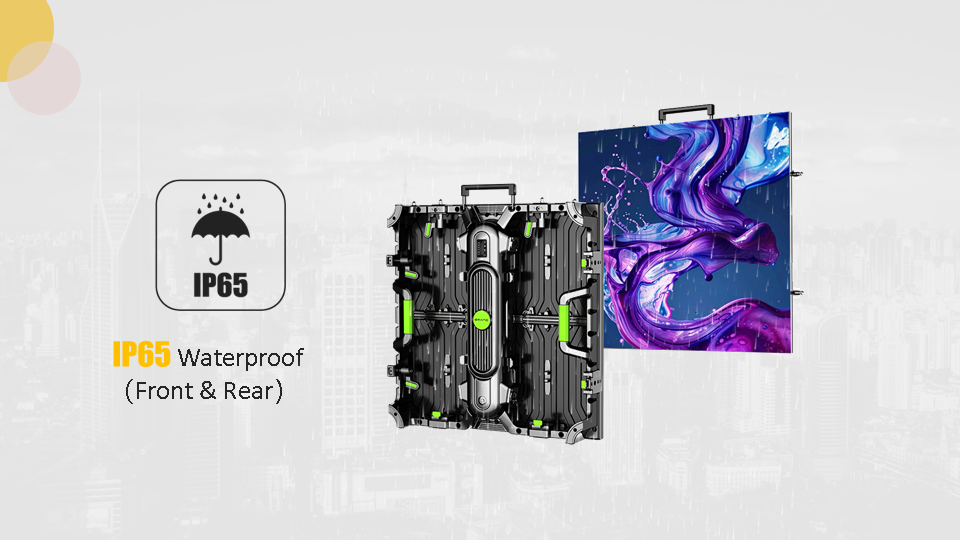

Indoor & Outdoor Available

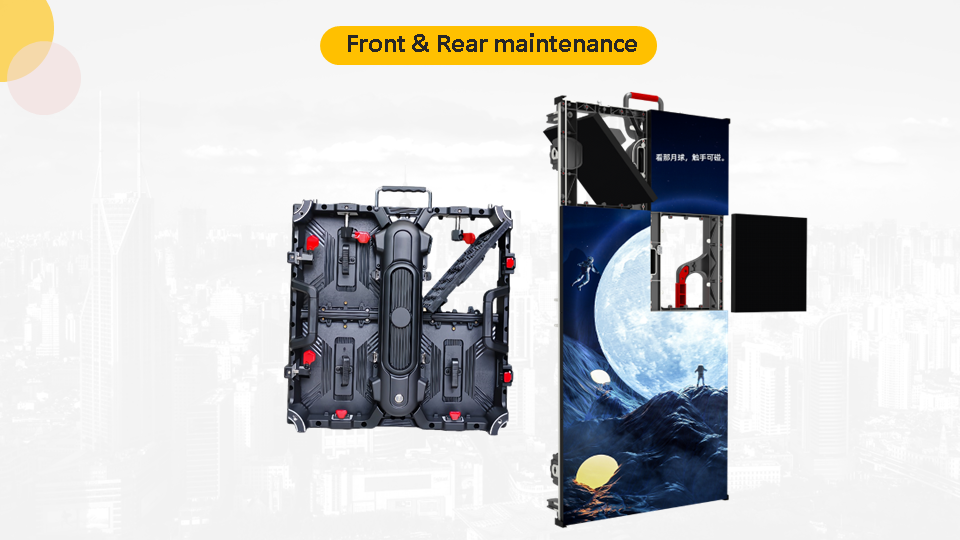

Front or Rear Dual Maintenance
Easy to install and maintain
Main Parameter Specification:
| Item | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel Pitch(mm) | 2.604 | 2.976 | 3.91 | 4.81 |
| LED Encapsulation | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| SMD1415 | SMD1415 | SMD1921 | SMD1921 | |
| Module Resolution(pixels) | 96x96 | 84x84 | 64x64 | 52x52 |
| Module Size(mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Panel Resolution(pixels) | 192x192 | 168x168 | 128x128 | 104x104 |
| 192x384 | 168x336 | 128x256 | 104x208 | |

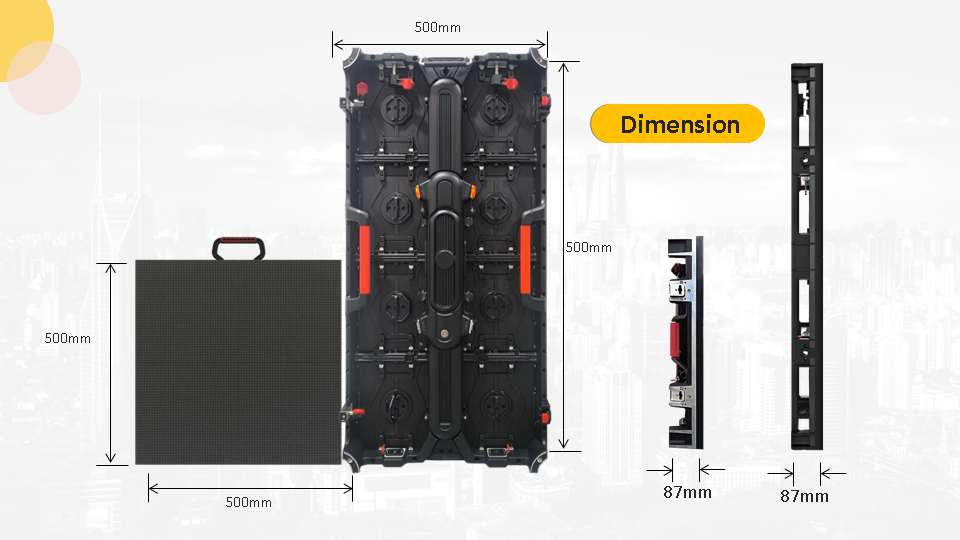

| Panel Size(mm) | 500x500x87 | 500x500x87 | 500x500x87 | 500x500x87 |
| 500x1000x87 | 500x1000x87 | 500x1000x87 | 500x1000x87 | |

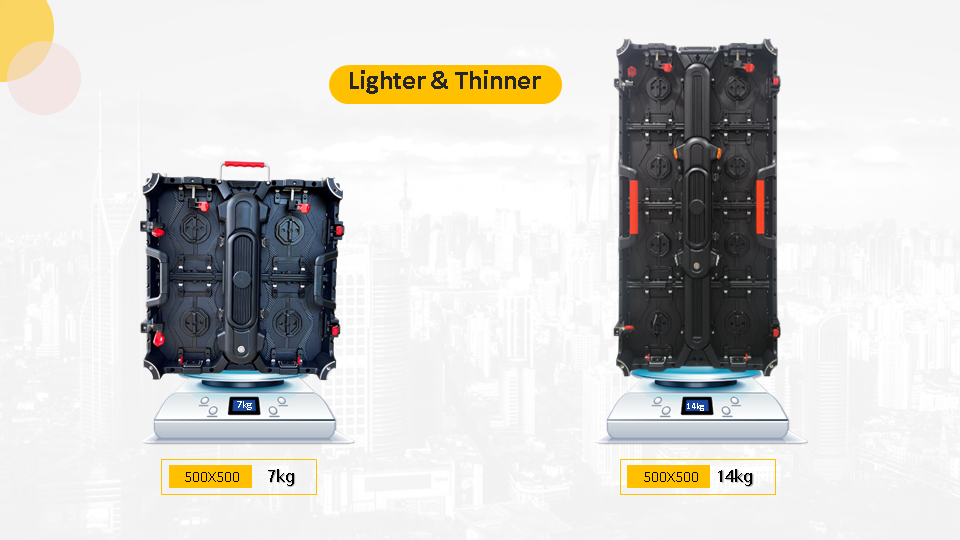

| Weight(kg/pcs) | 7/14 | 7/14 | 7/14 | 7/14 |
| Physical Density (Pixels/nf) | 147456 | 112896 | 65536 | 43264 |
| Optimum Viewing Angle | H:160° V:160° | H:160° V:160° | H:160° V:160° | H:160° V:160° |
| Option Distance(m) | >3 | >3 | >4 | >5 |
| Input Voltage | 110-220VAC±10% | 110-220VAC±10% | 110-220VAC±10% | 110-220VAC±10% |
| Max. Power Consumption(w/m2) | 500-720 | 500-720 | 500-720 | 500-720 |
| AVE. Power Consumption(w/m2) | 250-360 | 250-360 | 250-360 | 250-360 |
| Brightness(cd/m2) | 1000 INDOOR | 1000 INDOOR | 800 INDOOR | 800 INDOOR |
| 5000 OUTDOOR | 5000 OUTDOOR | 4500 OUTDOOR | 5000 OUTDOOR | |
| Refresh Frequency (Hz) | >1920-3840 | >1920-3840 | >1920-3840 | >1920-3840 |
| Frame Frequency（Hz） | 50-60 | 50-60 | 50-60 | 50-60 |
| Grayscale (bit) | 14-16 | |||
| Operating Temperature/Humidity(°C/RH) | -10°C-40°C/ 10-80%RH | |||
