Floor Stand Totem Hd Resolution Outdoor Advertising Led Screen Display


P5 320X160mm Module
Customized Cabinet
Iron or Aluminum
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

This Outdoor Double-sided Totem led screen is widely used on airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway, hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show, chain-store and etc.

totem led screen-application


1.stylish appearance, full plane, explosion-proof, dustproof, waterproof design;

2.HD resolution, the screen has a good visual display effect;

3. LED totem can be contrled with 3G/4G/WIFI/wireless;

4.wall-mounted, vertical, horizontal, embedded, desktop, a variety of installation methods;

5.through the information release system, connected to the network, you can remotely manage the advertising machine and directly publish the multimedia advertising information to the advertising machine;

6.free setting, can play various formats of pictures, audio, video and other multimedia materials.

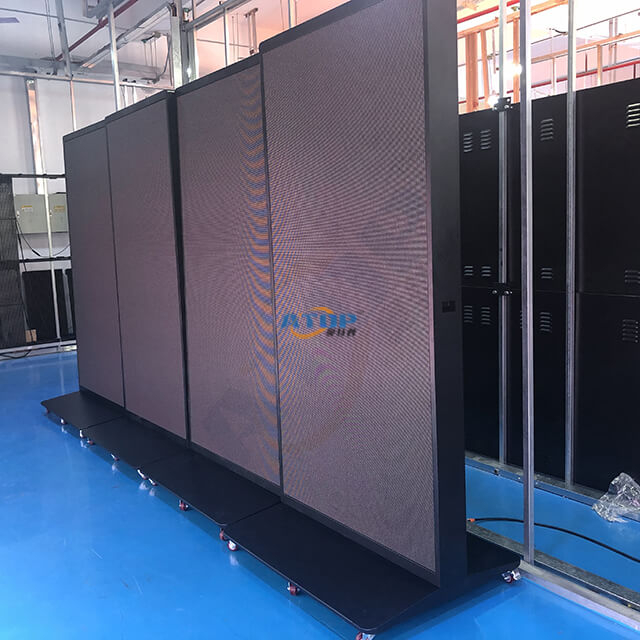

led totem display details

outdoor totem led display (5)outdoor totem led display (4)

Module details

p5 outdoor led module backp5 led module front

1.Lamp SMD1921: ATOPLED only use Nationstar and Kinglight LED lamp, the most stable led lamp in the market.

2.Power connector: GM brand

3.IC: Improve refresh and brightness

To achieve the best visual performance of our led display, we use the Best Driving IC, such as MBI5153/MBI5124/ICN2153/ICN2038S

4.Bottom shell: Protective fimness anti-deformation

5.Mask: Protective fimness anti-deformation

6. PCB board: High-quality fabric,choose the most suitable PCB to ensure good qutality

7.Data cable Connetor Exaclty and perfect to show high quality picture


p5 led module details

8. Terminal:assembly more stable,more convient, more efficient, can connect power supply

9. Fence: protect the pins,and prevent the pins are out of shape

10. Waterproof strip: Each module is fitted with a waterproof strip


P5 led module details

Cabinet Details

1.Standard iron cabiet size 960mmx960mm,cabinet size also can be customized

2.Stronger design, not easier to be deformation

3. PSU&receiving card positions

4. Built-in sending card and built-in mini player are availlable

5. Logo printing on surface is available

6. High cost performance, compared with die-casting cabinet, it can save 70 dollars per square meter.

P5 Outdoor led screen cabinet

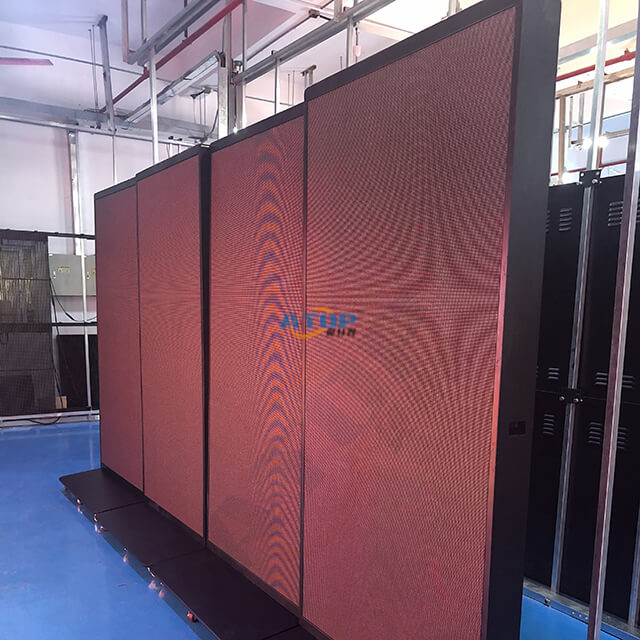

outdoor totem led display (3)

P5 Outdoor totem led display Technical Specification

P5 LED Module
p5 outdoor led module Pixel   Pitch(mm) 5mm
pixel density(dot/㎡) 40000
pixel configuration R G B
Module size(mm) 320×160
Module Resolution (dot) 64x32
Led lamp Nationstar/Kinglight   SMD1921
Scan 1/8 scan

LED Screen and Control System

outdoor totem led display (5)

linsn Sending card

Linsn receiving card

Driver   IC ICN2037/2038S/ICN2153/MBI5124
Power Supply Meanwell/CZCL/G-energy
Best View Distancing 5m
Vertical Viewing Angle 120° (Standard LEDs Viewing Angle)
Horizontal Viewing Angle 120° (Standard LEDs Viewing Angle)
Brightness >5500cd/㎡ Ensure brilliant images
Brightness Adjustment Manual,   256 level; Auto, 8 levels
Grey Scale 256 Shades Per Color
Grey levels 16 bits
Operating Temperature –25℃~+60℃ 10%~95%RH
Input Voltage AC110V/220V±10%
Input Power Frequency 50/60Hz
Screen Power Consumption Max:   800w/㎡; Average:480w/㎡
Refresh Rate 1920HZ/3840HZ
Frame Rate  > 60 frames/sec
Defect Rate ≤0.0001
Humidity 0-90%
IP rate IP65
Control Method Synchronized with computer monitor
Way of Drive 1/8 scan
Color Temperature 6500K±500
Color  > 16.7millions
Support Mode

VGA, 800*800 display synchronically with the computer, correspondence dot to dot

Control Distance

120m (no repeating); Optical fiber transmission: 500m- 10km
