ATOPLED SC series 500x500mm Right angle Rental LED Display

Pixel pitch: 3.91mm
Led Module size:250mmx250mm
cabinet size: 500mmx500mm
MOQ: 1 square meter
ISO9001, CE, FCC, RoHS,CCC Approved
2-3 Year Warranty
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

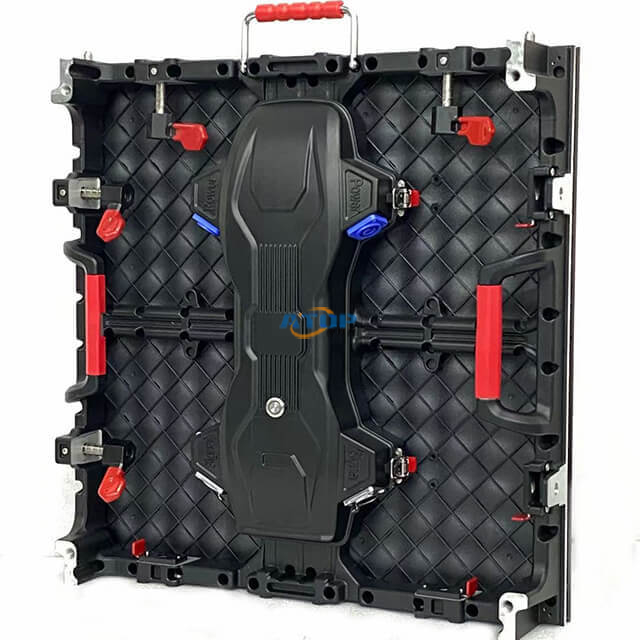

ATOPLED SC series 500x500mm Right angle Rental LED Display


Details description:

Aluminum die casting rental LED display screen with front and rear maintenance, high flatness, high quality, high reliability, quick lock design. 500×500/1000mm size, easy disassembly and installation, clear image, vivid video, meet the needs of various media advertising applications and rental events. SC Series cabinet can meet Varieties of pitch P2.6, P2.9, P3.91, P4.81.

rental led screen

rental led screen


The SC right angle series is a 45-degree oblique edge LED screen, which can make a 90-degree angle screen.
It has two quick locking devices on the left and right sides, which can guarantee faster assembly speed and better screen flatness.

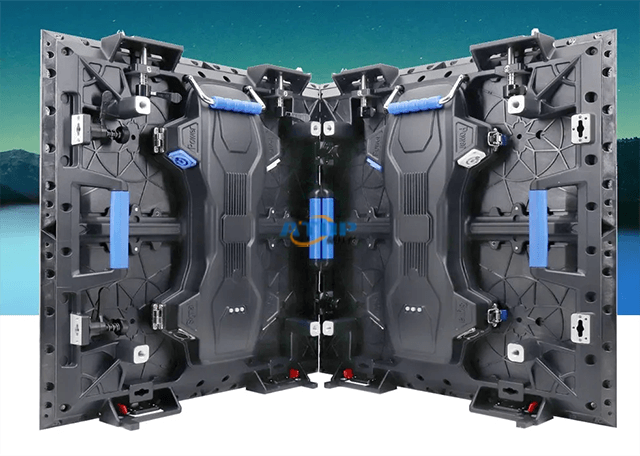

right angle rental led screen


90 degree splicing installation

The two cabinets are directly assembled at a 90-degree angle, which is easy to achieve seamless splicing and high flatness.


rental led screen-90 degree splicing installation


Splicing cube LED display

Used for LED displays that require a right angle of 90 degrees, such as cube screens.

splicing cube led screen


Quick Install

ATOPLED SC series LED screen has Two Fast Locks on Left and Right Side,Ensure faster assembly and better screen flatness.

right angle rental led screen-fast lock

High Precision Curve Lock

High Precision Curve Lock design is adopted to solve the problem that the old curved lock is difficult to use before.
Rotational control, more accurate, easy to use and quickly adjust curve degree.



right angle rental led screen-curved lock

P4.81 rental led screen curve led panel

Unique Design

The power supply and receiving card are installed on the door of the back cover of the cabinet,
which is easy to maintain the module.

right angle rental led screen

Lightweight and Thin

ATOPLED SC series LED display cabinet weighs 7KG/pc, easy to operate: one person to install, disassemble and maintain.


right angle rental led screen



IP65 Dustproof And Waterproof

The ATOPLED SC series outdoor LED display supports IP65 dustproof and waterproof,
it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

rental led screen

250x250mm 45 Degree Oblique Edge Modules

500x500mm LED display with standard size panel: 250x250mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

250x250mm 45 Degree Oblique Edge Modules

PERFECT STRUCTURE

The cabinet is perfect with top grade design and layout from fast lock, lifting handle, side handle, module handle, data connector, power connector, control box, indicator, locating pin, also cabinet can offer branding OEM on the back cover.

rental led screen



Anti collision system

The edge-conscious tile design guarantees optimum panel protection

P4.81 rental led screen 500x1000mm cabinet-edge-conscious tile design




Outdoor   500x500mm Rental LED Display Parameter
Pixel Pitch   (mm) P2.97 P3.91 P4.81
Pixel Configuration SMD1415 SMD1921 SMD1921
Density (Pixels/㎡) 112,896 65,536 43,264
Module Resolution (Pixel) 84x84 64x64 52x52
Module Size (mm) 250x250 250x250 250x250
Driving Mode (Duty) 1/21 1/16 1/13
Cabinet Size (mm) 500x500 500x500 500x500
Cabinet Weight (KG) 7 7 7
Brightness (CD/㎡) 4500 4800 4200
Viewing Angle (°) 140 140 140
Gray Grade (Bits) 14 14 14
Operation Power AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz
Max. Power Consumption (W/㎡) 720 720 560
Avg. Power Consumption (W/㎡) 240 240 190
Frame Frequency (Hz) ≥60 ≥60 ≥60
Refresh Frequency (Hz) ≥3,840 ≥3,840 ≥3,840
Working Temperature (ºC) -20~+60 -20~+60 -20~+60
Lifetime (Hours) 100,000 100,000 100,000
Protection Grade IP65(front), IP54(rear) IP65(front), IP54(rear) IP65(front), IP54(rear)


Indoor   500x500mm Rental LED Display Parameter
Pixel Pitch   (mm) P1.95 P2.6 P2.97 P3.91
Pixel Configuration SMD1515 SMD1515 SMD2121 SMD2020
Density (Pixels/㎡) 262,144 147,928 112,896 65,536
Module Resolution (Pixel) 128x128 96x96 84x84 64x64
Module Size (mm) 250x250 250x250 250x250 250x250
Driving Mode (Duty) 1/32 1/32 1/28 1/16
Cabinet Size (mm) 500x500 500x500 500x500 500x500
Cabinet Weight (KG) 6.5 6.5 6.5 6.5
Brightness (CD/㎡) 800 750 800 800
Viewing Angle (°) 140 140 140 140
Gray Grade (Bits) 14 14 14 14
Operation Power AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz AC100-240V 50-60Hz
Max. Power Consumption (W/㎡) 480 480 480 576
Avg. Power Consumption (W/㎡) 160 160 160 192
Frame Frequency (Hz) ≥60 ≥60 ≥60 ≥60
Refresh Frequency (Hz) ≥3,840 ≥3,840 ≥3,840 ≥3,840
Working Temperature (ºC) -20~+60 -20~+60 -20~+60 -20~+60
Lifetime (Hours) 100,000 100,000 100,000 100,000
Protection Grade IP31 IP31 IP31 IP31
