1000x500mm Transparent Led Screen

Pixel pitch: 3.91-7.81mm
Cabinet material: aluminum
MOQ: 1 square meter
ISO9001, CE, FCC, RoHS,CCC Approved
2-3 Year Warranty
Availability:
Quantity:

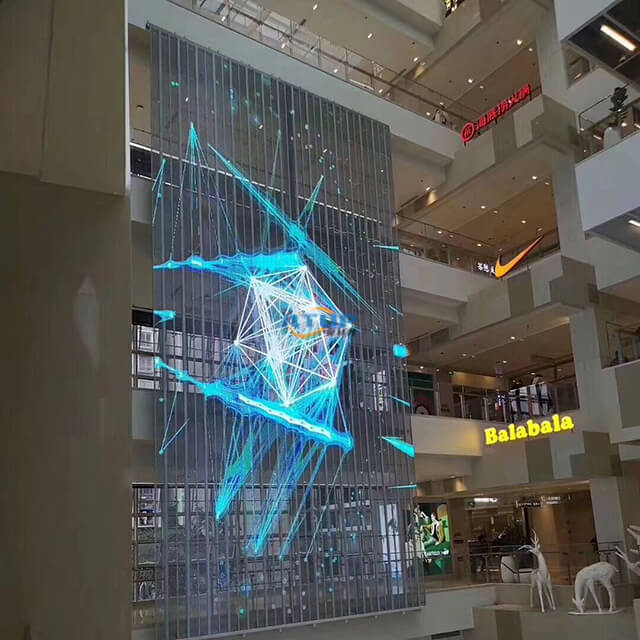

Transparent LED Display can be easily fixed on the surface of the curtain wall, and it is not necessary to change any Building structure.The standard module size is simple and elegant, High transparency rate for front and back, Perfect lighting, visual like dreaming over then 50% of energy than traditional display.

1. Excellent cabinet design

The hollow structure design of the LED transparent screen reduces the obstruction of the structural components to the line of sight and improves the perspective effect.


2. High permeability

the LED transparent screen has a permeability of 50%-90%, which ensures the original lighting and perspective function of the glass wall


3. Wide application, light weight and thin thickness

The transparent LED screen can be applied to most of the building glass curtain walls, and the design is compatible to match any scene, which don’t take up space. Also is light in weight, and the thickness of the led cabinet is only 80mm.


Front side of led screen:

transparent led screnn 2

Back side of led screen:

transparent led screen rear side


Details description:

1. Super light wight and high permeability

Transparent cabinet 4


2.High precision with die casting aluminum cabinet design

Transparent led cabinet 2


3.High brightness and power saving

transparent


4.High consistency with mask

tranparent cabinet 5png





Parameter details for transparent led screen:



Product name

P3.91-7.81

P7.81-15.625

Pixel Pitch(mm)

3.91-7.81

7.81-15.625

Physical Density (Pixels/ m2)

32768

8192

Pixel specifications

1R1G1B

1R1G1B

LED Encapsulation

SMD2121/1921

SMD1921

Module Size(mm)

L500xH125

L500xH125

Module Weigth(g/pcs)

800

800

Driving mode

1/16s and 1/8s

1/4s

Module resolution (dots)

128x16

64x8

Panel Resolution(pixels)

256x64

128x32

Panel Size<WxHxD>(mm)

1000x500

1000x500

Brightness(cd/nf)

1000nits/4500nits

>5000nits

Optimum Viewing Angle

H:160° V:140°

H:160° V:140°

Refresh Frequency (Hz)

>1920-3840

>1920-3840

Frame Frequency (Hz)

60

60

Module Working Voltage(V)

4.8-5.2

4.8・5.2

Module Consumption(W)

<9

<15

Max. Power Consumption(w/m2)

<550

<600

 Scale (bit)

16

16

Operating Temperature/Humidity(°C/RH)

-20°C to+50°C/ 20% to 90%

-20°C to+50°C/ 20% to 90%
