500x500mm P3.91 outdoor rental led display screen
Atopled MC500 series indoor outdoor rental led display is Atopled latest rental led display product with unique design and feature. the back cover is Removable, the display visual effect is better, the image and video is more clean with uniformity color.
FEATURES and advantage:
1. Die-casting aluminum , low temp-rise.
2.Hard Connection, HUB card design, Without Any Cables.
3. Optional for Magnetic front service or Back service with screw.
4.High-efficiency cooling, No fan ,mute design, noise-free.
5. High refresh rate , low light high gray.
6. High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm.
7. Lightweight - weighs only 7.5kg, single person can be a single portable, and extremely easy to install.
8. Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements.
Details products:
1.Atopled new design cabinet incorporates many aesthetic elements, Same cabinet design for variety of pixel pitch led display
INDOOR: P1.953, P2.5, P2.604 P2.976 P3.91 P4.81
OUTDOOR: P2.976 P3.91P4.81
2. Hard Connection without any cables. Detachable back door cover

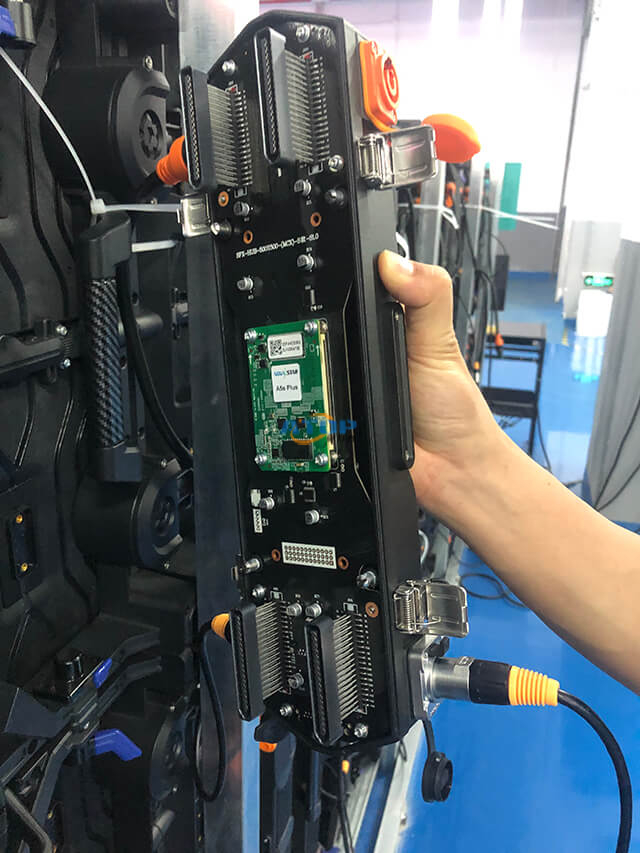

HUB Board
* Without wires connection,signal andpower can transfer more stable andreliable.
* HUB board connect modules andpower supplies directly instead ofwires.
*Directly take out back cover, easy tochange within 5 seconds.
3. Front & rear maintenance
ATOP MC500 Series Rental LED Display is dual maintenance product, not only 100% front accessable but also can do rear service..
The LED panels are magnetic and can be removed by tools from front side in 5 seconds. easy and convient, save you cost and labor.
4. Led panel seamless splicing and better visual effects
High precision aluminum cabinet frame make seamless splicing image and video display, offering you the perfect visual experience
you desire from any angles.The picture quality confronts viewers with an entirely new sensory experience.
5. Multi installation mode
Hanging installation, stacking installation, mounting installation, Concave&Convex installation.
6. Cabinet can be with curved lock for creative led screen.
In order to meet the various aspects of the LED screen field. MC500/1000 series led display design for Curved Installation. Curved with every 2.5° between -10°and 10°, which can make convex and concave.
7. Structure details and support right angle Installation
Supports 90° right angle LED display installation to meet some special buildings and applications.
Technology parameter:
Item | P1.953 | P2.5 | P2.604 | P2.976 | P3.91 | P4.81 | |||
Pixel Pitch(mm) | 1.953 | 2.5 | 2.604 | 2.976 | 3.91 | 4.81 | |||
LED Encapsulation | SMD1515 | SMD1515 SMD1415 | SMD2020 SMD1415 | SMD2020 SMD1415 | SMD2121 SMD1921 | SMD2121 SMD1921 | |||
Module Resolution(pixels) | 128x128 | 100x100 | 96x96 | 84x84 | 64x64 | 52x52 | |||
Module Size<WxH>(mm) | 250x250 | ||||||||
Panel Resolution(pixels) | 256x256 | 200x200 | 192x192 | 168x168 | 128x128 | 104x104 | |||
Panel Size<WxHxD>(mm) | 500x500x80 /500x1000x80 | ||||||||
Weight(kg/pcs) | 7.5/14 | 7.5/14 | 7.5/14 | 7.5/14 | 7.5/14 | 7.5/14 | |||
Physical Density (Pixels/nf) | 262144 | 160000 | 147456 | 112896 | 65536 | 43264 | |||
Optimum Viewing Angle | H:160° V:160° | ||||||||
Option Distance(m) | >2 | >3 | >3 | >3 | >4 | >5 | |||
Input Voltage | 110-220VAC±10% | ||||||||
Max. Power Consumption(w/m2) | 500-720 | ||||||||
AVE. Power Consumption(w/m2) | 250-360 | ||||||||
Brightness(cd/m2) | 600 INDOOR | 800 INDOOR | 1000 INDOOR 4500 OUTDOOR | 1000 INDOOR | 800 INDOOR | 800 INDOOR | |||
Refresh Frequency (Hz) | 3840 | ||||||||
Frame Frequency（Hz） | 50-60 | ||||||||
Gray scale (bit) | 16 | ||||||||
Operating Temperature/Humidity(°C/RH) | -10°C-40°C/ 10-80%RH | ||||||||
