Creative led screen with flexible led module

Pixel pitch: P1.8, P2, P2.5, P3, P4, P5
Flexible led module
Front service design
Availability:
Quantity:

Variety of pixels pitch for flexible led screen P1.875, P2, P2.5, P3, P4, P5

Led module magnets installation, full front maintenance

Super flexible, Ultra-thin, no cabinet installation, easy installation



FEATURES AND ADVANTAGE:


1. High Flexibility, can be any designed for rolled, bend and swing according to customers’ needs.

2. HD visual experience——1.8mm, 2mm, 2.5 mm, 3mm, 4mm pixel pitches all available, high refresh rate (1920Hz-3840Hz), no scanning line, clear and vivid picture, showing the superior visual effect.

3. No cabinet metal frame, any shape of structure can be designed as you need, such as such as circle, wave, bend and cylinder etc. creative solution.

4. Ultra-light and thin--using special materials and advanced technology, every flexible led module is weight of 85g, saving labor cost and shipping cost.

5. Quick install -Install the LED screen with soft led modules directly, magnetic connection, front maintenance, easy to assemble and disassemble, saving time and effort.



Details Description:

flxible led module

1. Flexible led module series pitch have P1.875/P2/P2.5/p3/p4/p5  low power consumption, low heat, high contrast, high brightness and high gray, all black led with high contrast

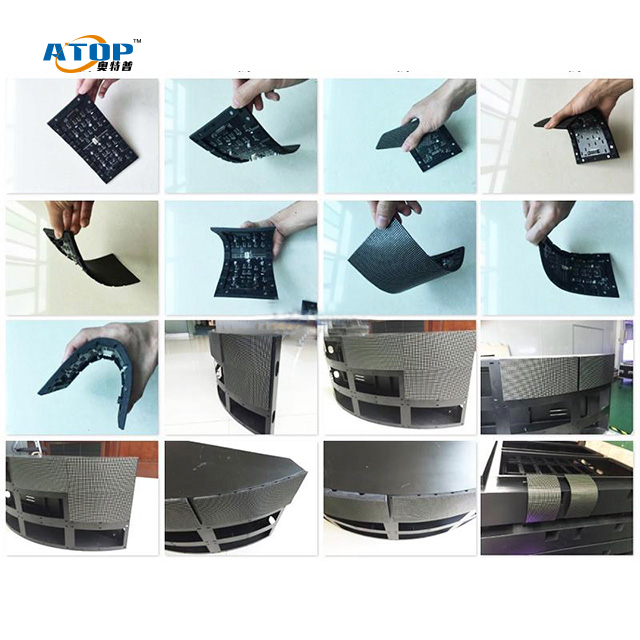

2. Supper flexible

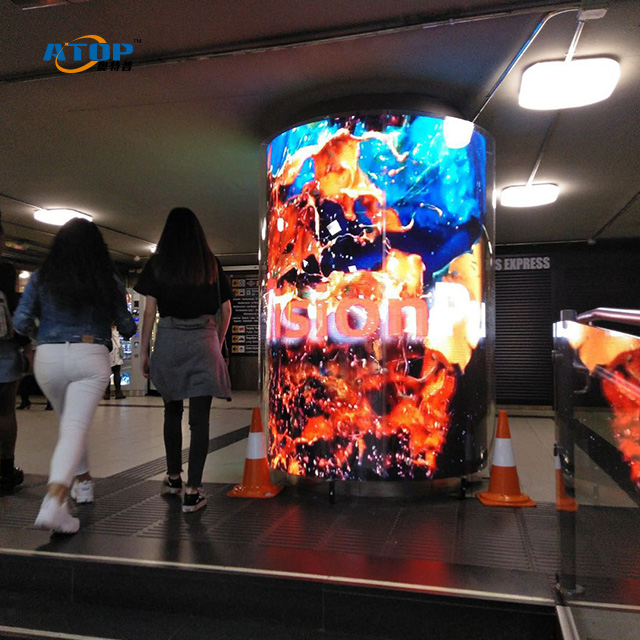

Suitable for inner arc, outer arc, cylindrical, etc,  It can be designed for different artistic creations

creative led screen




3. Ultra-thin and light weight and easy installation

Flexible led panel

flexible led module

4.High gray, high refresh rate

Refresh rate can be 1920-3840, made led screen video/image no delay, no scan line.Creative led screen projects

Technology parameter:

Creative led screen


Product name

P1.875

P2

P2.5

P3

P4

P5

Pixel Pitch(mm)

1.875

2

2.5

3

4

5

Physical Density (Pixels/ m2)

284444

250000

160000

111111

62500

40000

Pixel specifications

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

LED Encapsulation

SMD1515

SMD1515

SMD2121

SMD2121

SMD2121

SMD2121

Module Size(mm)

L240xH120xT15

L240xH120xT15

L240xH120xT15

L240xH120xT15

L256xH128xT15

L320xH160xT15

Driving mode

1/32s

1/32s

1/32s

1/32s

1/16S

1/16S

Display resolution (dots)

128x64=8192

120x60=7200

96x48=4608

80x40=3200

64x32=2048

64x32=2048

Brightness(cd/nf)

>700

>700

>1100

>1100

>1100

>800

Optimum Viewing Angle

H:160° V:140°

H:160° V:140°

H:160° V:140°

H:160° V:140°

H:160° V:140°

H:160° V:140°

Refresh Frequency (Hz)

>1920-3840

>1920-3840

>1920-3840

>1920-3840

>1920-3840

>960-3840

Frame Frequency (Hz)

60

60

60

60

60

60

Max. Power Consumption(w/m2)

<550

<550

<600

<550

<550

<550

 Scale (bit)

16

16

16

16

16

16

Operating Temperature/Humidity(°C/RH)

-20°C to+50°C/ 20% to 90%

-20°C to+50°C/ 20% to 90%

-20°C to+50°C/ 20% to 90%

-20°C to +50°C/ 20% to 90%

-20°C to +50°C/ 20% to 90%

-20°C to +50°C/ 20% to 90%
