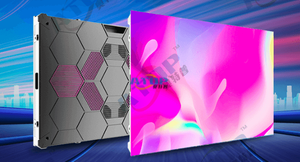

640x480 Fine Pixels Led Screen

Standard cabinet size 640x480mm
Pixel pitch p1.25, P1.5, p1.8, p2, p2.5, p3
Front service design
Availability:
Quantity:

Variety of pixel pitch P1.25,P1.5, P1.6, P1.8, p2, P2.5

Full front maintenance, all parts can be bring out from front

Wide application for airport, train station, TV studio, traffic center, governmental agencies etc



FEATURES AND ADVANTAGE:


1. Uniform led module/led cabinet size, 320x160mm/640x480mm

2. Die casting cabinet design for seamless stitching

3.For a closer looking, Small pixel pitch, high resolution, will not see the pixels

4. Lock design to be sure flatness of whole led screen

5. Ultra wide viewing angle both vertical and horizontal


1.LED lamp

For small pixel pitch indoor led lamp ATOPLED are always using nationstar brands

Nationstar led lamp series FC-B1010RGBT/NH-B1010RGBT-HF/RS-1515MBAM/NH-B1515RGBA-HF

Nationstar led

2. IC CHIP

ATOPLED led screen products with standard IC ICN2153, Refresh rate 3840HZ. As projects’ demands, also doing Macroblock chip, MBI5153

1.1

3. Seamless Stitching

Die casting cabinet designing, side with two fast lock to be sure the precision of whole led screen.

cp-2.4

4. High resolution, for closer look, it will not see pixels.

High resolution led screen

5. Big viewing angle

Ultra wide viewing angle, visitor can be saw high quality picture/video from both horizontal and vertical

1.4

6.Efficient heat dissipation

Cooling holes in the back cover of the cabinet for efficient heat dissipation

fine led panel

7. Products show in different angle

front maintenance led cabinet

fine led cabinet details

Technology parameter:

640x480mm series led screen


Item

AP1.25

AP1.53

AP1.667

AP1.86

AP2

AP2.5

Pixel Pitch(mm)

1.25

1.53

1.667

1.86

2

2.5

LED Encapsulation

SMD1010

SMD1010

SMD1010

SMD1515

SMD1515

SMD2121

Module Resolution(pixels)

256x128

208x104

192x96

172x86

160x80

128x64

Module Size(WxH)(mm)

320x160

320x160

320x160

320x160

320x160

320x160

Panel Resolution (pixels)

512x384

416x312

384x288

344x258

320x240

256x192

Panel Size(WxH)(mm)

640x480

640x480

640x480

640x480

640x480

640x480

Weight(kg/pcs)

6

6

6

6

6

6

Optimum Viewing Angle

H:160° V:160°

H:160° V:160°

H:160° V:160°

H:160° V:160°

H:160° V:160°

H:160° V:160°

Option Distance(m)

>1.5

>1.9

>2

>2

>2.5

>2.5

Brightness(nits)

600

600

600

600

600

600

Voltage

110-220VAC±10%

110-220VAC±10%

110-220VAC±10%

110-220VAC±10%

110-220VAC±10%

110-220VAC±10%

Refresh Frequency (Hz)

>3840

>3840

>3840

>3840

>3840

>3840

Frame Frequency (Hz)

50/60

50/60

50/60

50/60

50/60

50/60

Gray Scale (bit)

16

16

16

16

16

16

Operating Temperature/Humidity(°C/RH)

-20°C to+50°C/20% to 90%

-20°C to+50°C/20% to 90%

-20°C to+50°C/20% to 90%

-20°C to+50°C/20% to 90%

-20°C to+50°C/20% to 90%

-20°C to+50°C/20% to 90%
